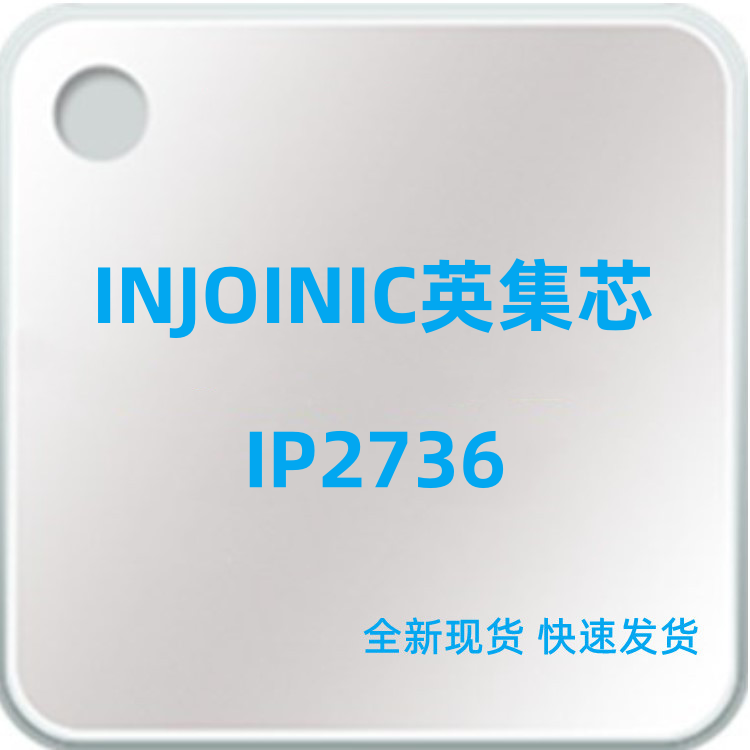

The IP2736 is a highly integrated fast charging controller dedicated for USB interfaces which supports many kinds of charging standards includes Type-C Source,PD2.0/PD3.1/PPS/EPR28V,HVDCP QC5/QC4+/QC3+/QC3.0/QC2.0(Quick Charge),FCP(Hisilicon®Fast Charge Protocol),SCP(Super Fast Charge),AFC(Samsung®Adaptive Fast Charge),SFCP,MTK PE+2.0/1.1(MediaTek Pump Express Plus 2.0/1.1),UFCS(Universal Fast Charging for Mobile Devices),BC1.2,Apple 2.4A,SAMSUNG 2.0A.

The IP2736 supports automatically detecting the connected device and switching standards type to respond to the fast charging requirements.

1.Features

●Support Charging standards including

●USB Type-C and USB Power Delivery

-Support USB PD2.0/PD3.1/PPS/EPR 28V

-Type-C Source

-Integrated VCONN power and switch for

reading E-Marker cable

●Support QC5/QC4+/QC3+/QC3.0/QC2.0

-Compatible with Class B

●Support FCP/SCP

●Support AFC

●Support SFCP

●Support MTK PE+2.0/1.1

-PE+2.0:5~20V(0.5V/step)

-PE+1.1:5V,7V,9V,12V

●Support UFCS

●Support BC1.2,Apple 2.4A,SAMSUNG 2.0A

●Independent built-in shunt regulator

●Programmable constant voltage control with

minimum step of 10mV

●Programmable constant current control

●Integrated low side current sense amplifier

●Cable drop compensation

●Support multiple modes of voltage control

●Control of PWM controller feedback

●Control of optocoupler

●Control of I2C

●Power management

●Integrated NMOS driver and support VDS

detecting

●Integrated Bleeder

●Support power saving mode

●Programmable fault protections

●Over Voltage Protection(OVP)

●Under Voltage Protection(UVP)

●Over Current Protection(OCP)

●Over Temperature Protection(OTP)

●DP/DM/CC1/CC2 over voltage protection

●Package

●QFN24

2.Applications

●USB power output ports for AC adapter,

power bank,car charger,etc.

●Power supply for smart phones,tablets,

netbooks,digital cameras,etc.
