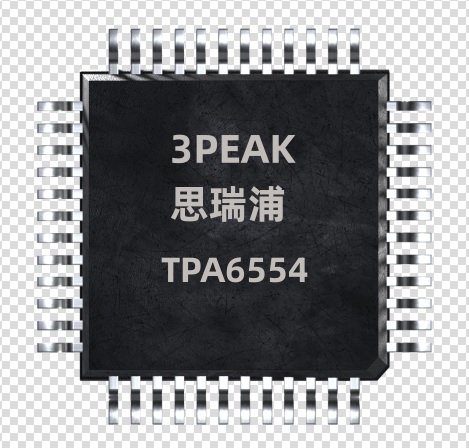

The TPA655x series op-amps are CMOS single, dual, and quad RRIO op-amps with low offset, low power, and stable high-frequency response. They incorporate 3PEAK’s proprietary and patented design techniques to achieve 10-MHz bandwidth, 3-V/μs slew rate, and low distortion. The TPA655x series op-amps have 1-μVPP voltage noise at 0.1 Hz to 10 Hz, because the bipolar transistor with low 1/f noise is used as the input stage. Considering the requirement of the low standby power in some special applications, there is a shutdown function which is TPA6551N with only 0.5-μA shutdown current.

Features

• Supply Voltage: 2.5 V to 5.5 V or ±1.25 V to ±2.75 V

• Offset Voltage: ±1.5 mV Maximum at 25°C

• GBWP: 10 MHz, Slew Rate: 3 V/μs

• Rail-to-Rail Input and Output

• Low Noise: 10 nV/√Hz at 1 kHz

• Low 1/f Noise: 20 nV/√Hz at 10 Hz

• Low Power: 1.5 mA Maximum per Channel

• −40°C to 125°C Operation Temperature Range

Applications

• Audio Equipment

• Instrumentation

• Sensor Interface

• IoT Device
