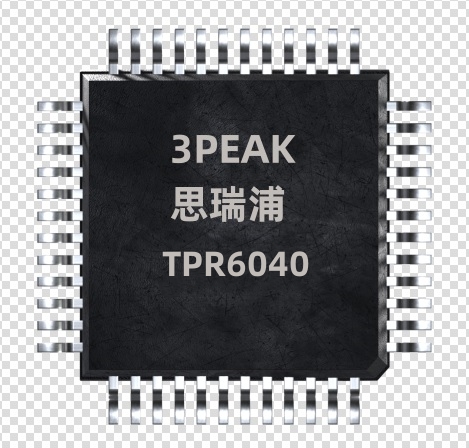

TPR6040F20-S3TR-S/TPR6040F25-S3TR-S/TPR6040F30-S3TR-S/TPR6040F33-S3TR-S/TPR6040F40-S3TR-S/TPR6040F50-S3TR-S/TPR6040F80-S3TR-S/TPR6040FA0-S3TR-S电源管理产品电压基准IC.

The TPR6040 is a shunt voltage reference with guaranteed temperature stability over the entire operating temperature range. The temperature range is extended from -40 °C up to +125 °C.

The TPR6040 operates with a wide current range from 0.15 to 15 mA with a typical dynamic impedance of 0.3 Ω.

Features

 Fixed Output Voltage:

− 2.048 V, 2.5 V, 3 V, 3.3 V, 4.096 V, 5 V, 8.192 V and 10 V

 High Initial Accuracy and Low Temperature Coefficient

− A Grade: Max 0.1%, 25 ppm/°C

− B Grade: Max 0.2%, 50 ppm/°C

 Operation from −40°C to 125°C

 Sink Current Capability: 150 μA to 15 mA

 Stable with Any Capacitive Loads

Applications

 Power

 Led Lighting

 Current Sensing

 Instrumentation

 Industry
