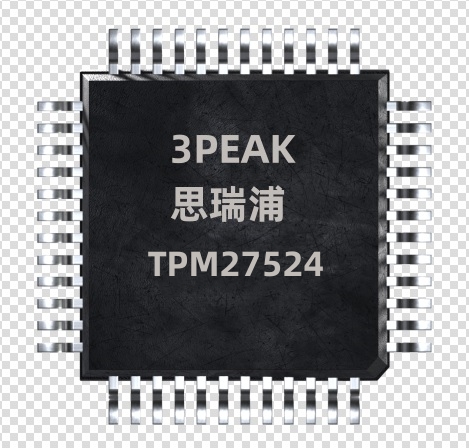

The TPM2752x family is a series of dual-channel low-side gatedrivers for MOSFET, IGBT and GaN power switches. High sourcing and sinking current capability of 5-A allows improving switching efficiencies by minimizing slew time and switching loss. The device supports maximum 25-V supply voltage and –5V improves system robustness especially in noisy industrial applications. Ultra-low propagation delay and excellent matching between two channels are designed for applications with tight timing requirements.

The TPM2752x family consists of a set of gate-drivers with different polarities, allowing customers to select based on application needs. The wide range of package support from SOP-8, EMSOP-8, DFN3X3-8 aligns with industrial standard packages. An extra ultra-small DFN2X2-8 assists design for ultra-compact synchronous rectifiers in power bricks.

Features

⚫ Industry-Standard Pin-Out

⚫ 4.5-V to 23-V Single-Supply Range

⚫ Dual Independent Channels

⚫ 5-A Peak Source and Sink-Drive Current

⚫ Independent-Enable Function for Each Output

⚫ TTL and CMOS Compatible Threshold

⚫ Outputs Held Low During VDD-UVLO or Input Floating

⚫ Low Propagation Delay (13-ns Typical)

⚫ Fast Rise and Fall Times (7-ns and 6-ns Typical)

⚫ <1-ns Typical Delay Matching Between Two Channels

⚫ Two Outputs can be used in Parallel for Higher Drive Current

⚫ ESD Protection Exceeds JESD 22 – 6-kV HBM, 1.5-kV CDM

⚫ Available in SOP-8, EMSOP-8 and DFN3X3-8, DFN2X2-8 Packages

Applications

⚫ Switched-Mode Power Supplies

⚫ DC-DC Converters

⚫ Motor Control, Solar Inverters

⚫ Gate & IGBT Drive
