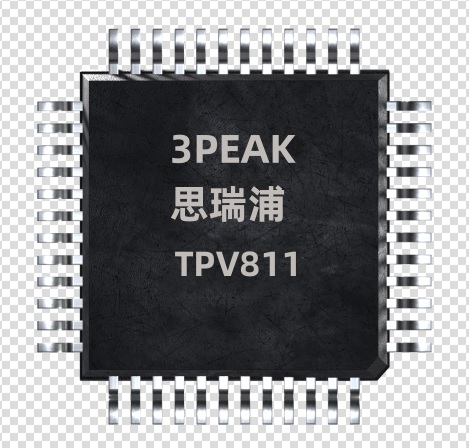

TPV811复位芯片:TPV811V-5TR/TPV811W-5TR/TPV811Y-5TR/TPV811Z-5TR/TPV811R-5TR/TPV811S-5TR/TPV811T-5TR/TPV811M-5TR/TPV811L-5TR/TPV811V-4LTR/TPV811W-4LTR/TPV811Y-4LTR/TPV811Z-4LTR/TPV811R-4LTR/TPV811S-4LTR/TPV811T-4LTR/TPV811M-4LTR/TPV811L-4LTR.

The TPV811/812 is a supervisory circuit that monitors power supply voltage levels and provides a power-on reset signal.

A reset signal can also be asserted by an external manual reset input.

The reset periods are fixed at 200 ms (typical).

The TPV811/812 is available in a 5-lead SOT-23-5 package and 4-lead SOT-143 package. And typically consumes only 2.2 μA, suitable for use in low power, portable applications.

Features

 Precision low voltage monitoring

 200 ms (typical) reset timeout

 Manual reset input

 Reset output stage

 Push-pull Active-low output (TPV811)

 Push-pull Active-high output (TPV812)

 Low power consumption: 2.2 μA

 Guaranteed reset output valid to VCC = 1 V

 Power supply glitch immunity

 Specified from −40°C to +125°C

 5-lead SOT-23-5 package and 4-lead SOT-143 package

Applications

 Microprocessor systems

 Computers

 Controllers

 Intelligent instruments

 Portable equipment
