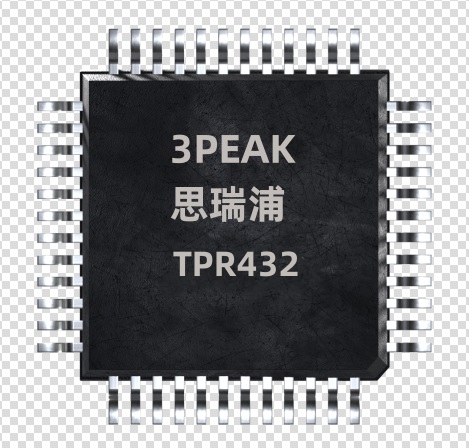

The TPR431 and TPR432 are adjustable shunt voltage references with guaranteed temperature stability over the operating temperature range. The device temperature range is extended from −40 °C up to +125 °C. The output voltage can be set to any value between 2.5 and 36 V with two external resistors. The TPR431 operates with a wide current range from 1 to 80 mA with a typical dynamic impedance of 0.2 Ω.

Features

 Reference Voltage Tolerance at 25°C

− 0.5% (B Grade)

− 1% (A Grade)

 Operation from –40°C to 125°C

 0.2-Ω Typical Output Impedance

 Sink Current Capability: 1 mA to 80 mA

 Adjustable Output Voltage: VREF to 36V

Applications

 Power

 Led Lighting

 Current Sensing

 Instrumentation

 Industry
