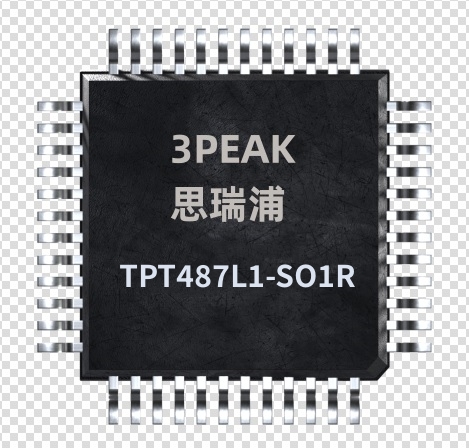

The TPT487 are IEC61000 ESD protected, 3.0V to 5.5V powered transceivers that meet the RS-485 and RS-422 standards for balanced communication.

Transmitters in this family deliver exceptional differential output voltages into the RS-485 required 54Ω load. These 500kbps devices have very low bus currents so they present a true “1/8 unit load” to the RS-485 bus. This allows up to 256 transceivers on the network without using repeaters. Receiver (Rx) inputs feature a “Full Fail-Safe” design, which ensures a logic high Rx output if Rx inputs are floating, shorted, or on a terminated but undriven bus.

TPT487 is designed for half-duplex RS485, and support SOP8， MSOP8 and DFN3X3-8L package, which is characterized from –40°C to 125°C.

Features

⚫ Exceeds Requirements of EIA-485 Standard

⚫ Hot Plug Circuitry - Tx and Rx Outputs Remain ThreeState During Power-up/Power-down

⚫ Data Rate: 500 Kbps

⚫ Up to 256 Nodes on a Bus (1/8 unit load) at 500kbps

⚫ Full Fail-safe Receiver (Open, Short, Terminated)

⚫ Wide Supply Voltage 3V to 5.5V

⚫ Bus-Pin Protection:

±18 kV HBM ESD

±15 kV IEC61000-4-2 Contact Discharge

±18 kV IEC61000-4-2 Air Discharge

⚫ –40°C to 125°C Operation Temperature Range

Applications

⚫ Motor Drives

⚫ Industrial Control

⚫ Communication Infrastructure
