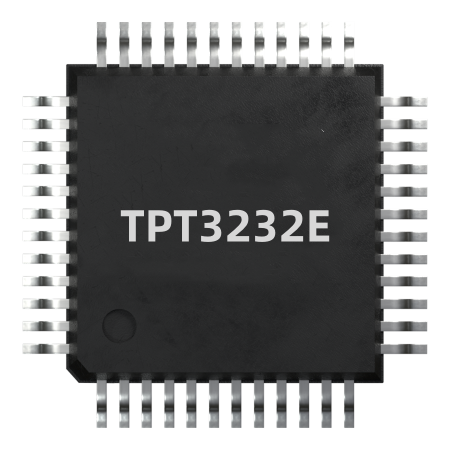

The TPT3232E is IEC61000 ESD protected, 3.0V to 5.5V powered transceivers that meet the RS-232 standards for balanced communication. Each receiver converts TIA/RS-232 inputs to TTL/CMOS levels. The devices have a typical threshold of 1.25V, a typical hysteresis of 0.3V, and can accept ±15V inputs.

The device operates at data signaling rates up to 250 kbps. The TPT3232E is available in SOP16, SSOP16 and TSSOP16 package, and is characterized from –40°C to 125°C.

Features

⚫ Meets the Requirements of TIA/EIA- 232-F and ITU V.28 Standards

⚫ Wide Power Supply Range: Single +3V to +5.5V

⚫ Two Drivers and Two Receivers

⚫ Operates up to 250 kbps

⚫ Requires Only Four External 0.1μF Capacitors

⚫ ESD Protection for RS-232 Bus Pins ±15 kV (HBM) ±12 kV (IEC61000-4-2, Contact Discharge) ±15 kV (IEC61000-4-2, Air-Gap Discharge)

Applications

⚫ Battery-Powered Equipment

⚫ Industry Human Machine Interface

⚫ Notebook, Computers

⚫ Printers
