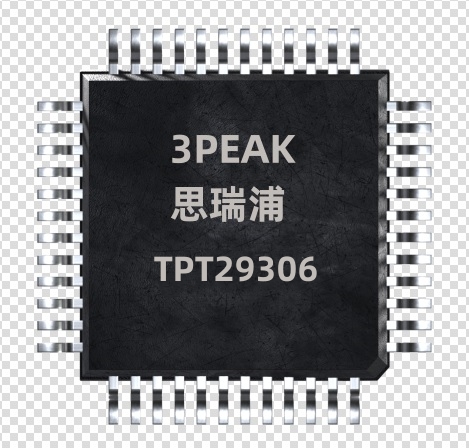

The TPT29306 device is a dual bidirectional I2C and SMBus voltage-level translator with an enable (EN) input, and work from 1.2V to 3.6V VREF1 and 1.8V to 5.5V VREF2.

The 3.5Ω Ron make the minimal propagation delay <1.5ns. If EN is high, the translator switch is ON, and the SCL1 and SDA1 I/O are connected to the SCL2 and SDA2 I/O, will allow bidirectional data flow between ports. If EN is low, the translator switch is off, and a high-impedance state exists between ports to isolate both sides.

The TPT29306 can also be used to run two buses, one is 400 kHz and the other is 100 kHz. If the two buses are operating at different frequency, the 100 kHz bus must be isolated when the other 400 kHz bus is required. If the master is running at 400 kHz, the maximum system frequency may be less than 400 kHz because of the delays added by the translator.

As with the standard I2C-bus system, pull-up resistors are required in both sides, to provide the logic HIGH levels on the translator’s bus. The device is designed to work with SM, FM and FM+ I2C-bus devices in addition to SMBus devices. The maximum frequency is dependent on the RC time constant, but generally supports > 2 MHz.

TPT29306 is available in MSOP8, VSSOP8, DFN1.4X1- 8L and DFN3X4-8L(none e-pad) package, and is characterized from –40°C to +85°C.

Features

⚫ Dual bidirectional Translator for SDA and SCL Lines in I2C Applications and SMBus Compatible

⚫ Support multi-mode: Standard-mode (SM), Fastmode (FM), and Fast-mode Plus (FM+)

⚫ Less than 1.5 ns (max) Delay to Accommodate SM and FM I2C devices and multiple masters

⚫ Allows Voltage-Level Translation Between

◼ 3.3V VREF1 and 5V VREF2

◼ 2.5V VREF1 and 3.3V or 5 V VREF2

◼ 1.8V VREF1 and 2.5V, 3.3V, or 5V VREF2

◼ 1.2V VREF1 and 1.8V, 2.5V, 3.3V, or 5V VREF2

⚫ Provides bidirectional voltage translation with no direction pin

⚫ High-impedance SCL1, SDA1, SCL2 and SDA2 pins for EN = LOW

⚫ Latch-Up performance exceeds 400 mA per JESD 78

⚫ ESD Protection Exceeds JESD 22

◼ 4000-V Human-Body Model

◼ 1000-V Charged-Device Model

Applications

⚫ I2C, SMBus, PMBus, MDIO, UART, Low-Speed SDIO, GPIO, and Other Two-Signal Interfaces

⚫ Servers/Storages

⚫ Routers (Telecom Switching Equipment)

⚫ Personal Computers/Consumer handsets

⚫ Industrial Automation
