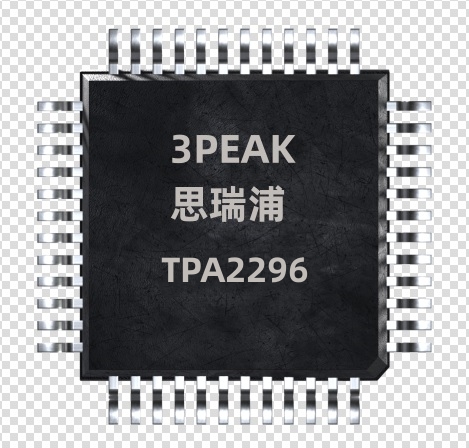

The TPA2296 family is of high voltage, high side current sense amplifier with voltage output. The TPA2296 can sense drops across shunts at common-mode voltages from –0.1V up to 70 V. The TPA2296 are available with three output voltage scales: 20V/V, 50V/V, 100V/V, with up to 0.5MHz bandwidth.

The TPA2296 operates from single 3.0V to 18V supply, offers breakthrough performance throughout the −40°C to +125°C temperature range. It features a zero-drift core, which leads to an offset drift of 0.6μV/°C throughout the operating temperature range and the common-mode voltage range.

The TPA2296 is offered in 6-pin and 5-pin SOT23 package.

Features

⚫ SMALL VOLTAGE OFFSET:

◼ TPA2296: ±0.5mV (MAX)

⚫ WIDE COMMON MODE VOLTAGE:

◼ TPA2296: -0.1V to +70V

⚫ WIDE CMRR THROUGH COMMON VOLTAGE: 100dB

⚫ SUPPLY VOLTAGE: 3.0V to +18V

⚫ ACCURACY and ZERO-DRIFT PERFORMANCE

◼ ±0.5% Gain Error (Max, -40°C ~125°C)

◼ 0.6μV/°C Offset Drift (Max, -40°C ~125°C)

◼ 5ppm/°C Gain Drift (Max, -40°C ~125°C)

⚫ THREE GAIN OPTIONS for VOLTAGE OUTPUT

◼ TPA2296T: 20V/V

◼ TPA2296F: 50V/V

◼ TPA2296H: 100V/V

Applications

 CURRENT SENSING (High−Side/Low-Side)

 BATTERY CHARGERS & POWER MANAGEMENT

 AUTOMOTIVE & INDUSTRIAL CONTROL

 BASE STATIONS & TELECOM EQUIPMENT
