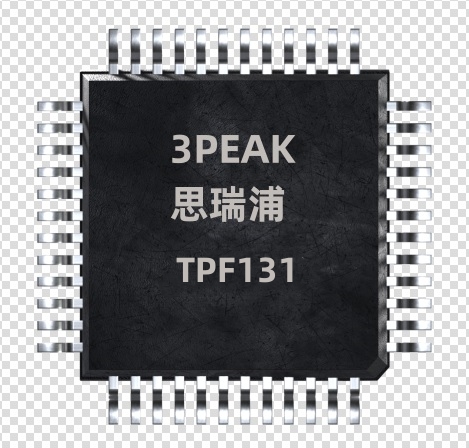

TPF131 is a specially designed for consumer applications, high-performance, low-cost video reconstruction filter, it combine excellent video performance and low power consumption perfectly. It incorporates one high-definition (HD) filter channels. The filter feature sixth-order Butterworth characteristics that are useful as digital-to-analog converter (DAC) reconstruction filters or as analog-to-digital converter (ADC) anti-aliasing filters. The HD filters can be bypassed to support HDCVI 1080i/720p video. As part of the TP131 flexibility, the input can be configured for ac- or dc-coupled inputs. The 84-mV output level shift allows for a full sync dynamic range at the output with 0-V input. The ac-coupled modes include a transparent sync-tip clamp option for composite video (CVBS), Y', and G'B'R' signals. AC- coupled biasing for C'/P'B/P'R channels can easily be achieved by adding an external resistor to VS+.

The TP131 rail-to-rail output stage with 6-dB gain allows for both ac and dc line driving. The ability to drive two lines, or 75-Ω loads, allows for maximum flexibility as a video line driver. The 6-mA total quiescent current at 3.3 V makes it an excellent choice for power-sensitive video applications. TPF131 is available in SOT23-6 package (TPF131-TR). Its operation temperature range is from −40°C to +85°C.

Features :

 1-HDTV Video Filter Support Composite 1080i/720p

 Optimized 6th-order Butterworth Video reconstruction filter： HD Channel: -3dB ≥ 36MHz

 Support Multiple Input Biasing: - Provide 80-mV Level-Shift when DC-Coupled - Transparent Input Clamping when AC-Coupled - Support External DC Biasing when AC-Coupled

 Very Low Quiescent Current: 6 mA(at 3.3V, Typical)

 6dB Gain(2V/V), Rail TO Rail Output

 AC- or DC-Coupled Output Driving Dual Video Loads (75Ω)

 Wide Power Supply: +3.0V to +5.5V Single Supply

 Robust ESD Protection: - Robust 8kV – HBM and 2kV – CDM ESD Rating

 Green Product, SOT23-6 Package

Applications :

 Video Signal Amplification

 Set-Top Box Video Driver

 PVR、DVD Player Video Buffer

 Video Buffer for Portable or USB-Powered Video Devices

 HDTV
