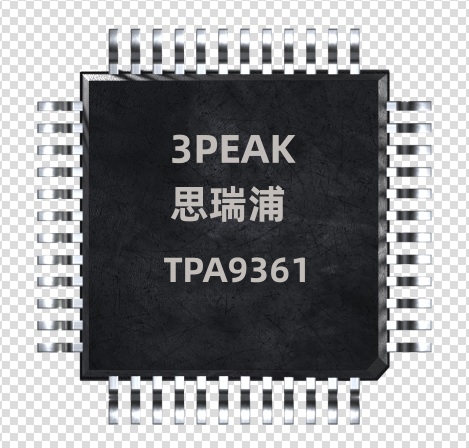

The TPA9361 is general-purpose, unity-gain difference amplifiers intended for precision signal conditioning. The onchip resistors are trimmed for excellent gain accuracy and high CMRR. It has extremely low gain drift at operated temperature range. It also provides exceptional common-mode rejection ratio (100 dB typical) and high bandwidth while amplifying signals well beyond the supply rails. The common-mode range of the amplifiers extends to almost double the supply voltage, making these amplifiers ideal for single-supply applications that require a high common-mode voltage range.

Features :

 Supply Voltage: 4.5V to 36V

 Offset Voltage: ±300μV Maximum

 Gain Error: 0.05% Maximum

 Bandwidth: 3MHz, Slew Rate: 5V/μs

 EMI Enhancement

 Over-Temperature Protection

 –40°C to 125°C Operation Temperature Range

Applications :

 Instrumentation

 Industrial control

 Audio

 Building block for precision amplifier circuit
