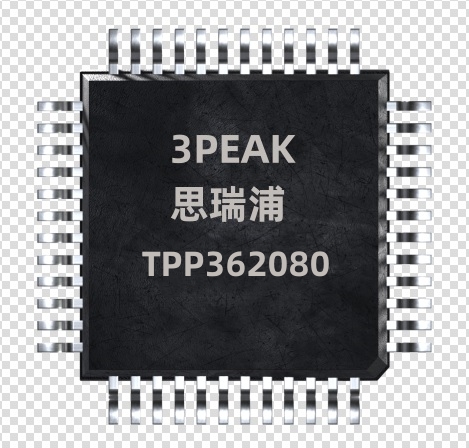

TPP362080-T6TR DC-DC宽压降压转换器IC|正品现货低价

来源:昊海鑫 时间:2022-09-11 10:21

The TPP36208 is a simple, easy-to-use, 2-A output, synchronous, step-down, switch-mode converter with internal power MOSFETs.

The TPP36208 integrates low-RDS(ON) power transistors in the TSOT23-6 package with internal soft-start, compensation, and protection features. TPP36208 offers a very compact solution to achieve a 2-A continuous output current over a wide input supply range, with excellent load and line regulation.

TPP36208 has different versions of switching frequency at 500-kHz and 2.2-MHz, also supports light load PSM to save quiescent current and forcedPWM mode to maintain fixed switching frequency.

The device is available in the 6-pin TSOT23-6 package with the support of a wide operation ambient temperature range from −40 °C to 125 °C.

Features

 Wide Supply Voltage: 4.5 V to 36 V

 Internal Power FET:180 mΩ and 90 mΩ

 0.6 V Reference Voltage with 2% Accuracy

 High-Efficiency Synchronous-Mode Operation

 Fixed Switching Frequency − 500 kHz (TPP362080/2) − 2.2 MHz (TPP362081/3)

 Low 2-μA Shutdown, 70-μA Quiescent Current

 Internal Light Load Power-Save Mode for High Efficiency at Light Load (TPP362080/1)

 Forced-PWM Mode for Low Output Ripple (TPP362082/3)

 Internal 2-ms Soft-Start Timer

 Internal Loop Compensation

 Over-Current Protection with Hiccup Mode

 Output Over Voltage Protection

 Thermal Shutdown

 Small outline package TSOT23-6

 −40°C to 125°C Operation Ambient Temperature Range

Applications

 12-V, 24-V Distributed Power Supply

 Industrial Applications

 General Purpose
