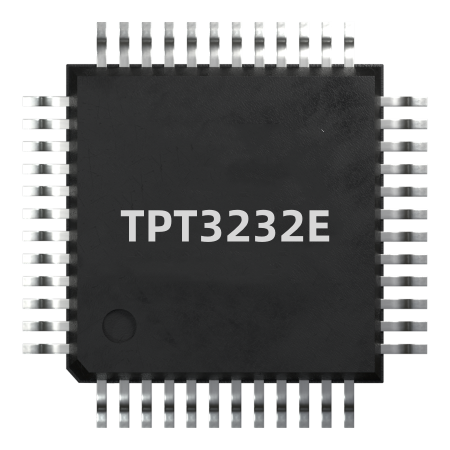

The TPT3232E is IEC61000 ESD protected,3.0V to 5.5V powered transceivers that meet the RS-232 standards for balanced communication.Each receiver converts TIA/RS-232 inputs to TTL/CMOS levels.The devices have a typical threshold of 1.25V,a typical hysteresis of 0.3V,and can accept±15V inputs.The device operates at data signaling rates up to 250 kbps.

The TPT3232E is available in SOP16,SSOP16 and TSSOP16 package,and is characterized from–40°C to 125°C.

Features

-Meets the Requirements of TIA/EIA-232-F and ITU V.28 Standards

-Wide Power Supply Range:Single+3V to+5.5V

-Two Drivers and Two Receivers

-Operates up to 250 kbps

-Requires Only Four External 0.1μF Capacitors

-ESD Protection for RS-232 Bus Pins±15 kV(HBM)±12 kV(IEC61000-4-2,Contact Discharge)±15 kV(IEC61000-4-2,Air-Gap Discharge)

Applications

-Battery-Powered Equipment

-Industry Human Machine Interface

-Notebook,Computers

-Printers
