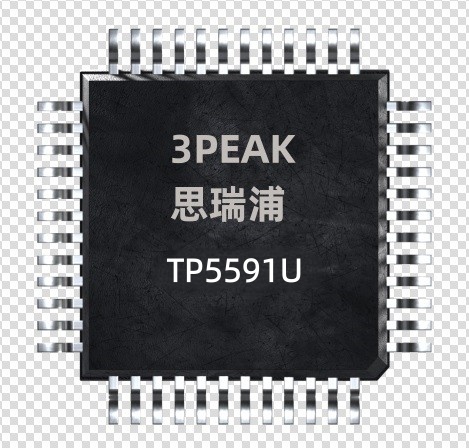

The TP5591-2-4 amplifiers are single, dual and quad chopper stabilized zero-drift operational amplifiers optimized for single or dual supply operation from 1.8V to 5.5V or ±0.9V to ±2.75V. The TP559x op-amps feature very low input offset voltage and low noise with 1/f noise corner down to 0.1Hz. The TP559x amplifiers are designed to have low offset voltage and offset temperature drift, wide gain bandwidth and rail-to-rail input and output swing while minimizing power consumption. The TP559x op-amps can provide low offset voltage (20μV Max) and near-zero drift over time and temperature with excellent CMRR and PSRR. The TP5591 (single version) is available in SC70-5, SOT23-5 and SO-8 packages.

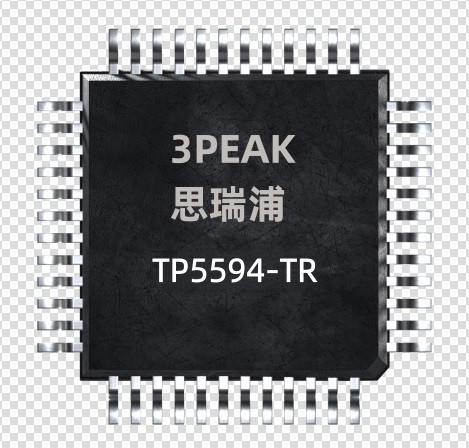

The TP5592 (dual version) is offered in MSOP-8, SO-8 package. The TP5594 (quad version) is available in TSSOP-14 and SO-14 package. All versions are specified for operation from -40°C to 125°C.

Features

 LOW OFFSET VOLTAGE: 20 μV (Max)

 ZERO DRIFT: 0.01 µV/°C

 Ultra-low Noise: - Input Noise Voltage: 17 nV/√Hz at 1 kHz - 0.1Hz to 10Hz Noise Voltage: 370 nVPP - 1/f Noise Corner Down to 0.1Hz

 3.3 MHz Bandwidth, 2.5 V/μs Slew Rate

 Low Supply Current: 470 μA per Amplifier

 Single-Supply Operation Down to +1.8V

 Low Input Bias Current: 60 pA

 High Gain, 127 dB High CMRR & PSRR

 Overload Recovery Time: 35 μs

 Rail-to-Rail Input and Output Swing

 –40°C to 125°C Operation Range

Applications

 Medical Instrumentation

 Temperature Measurements

 Precision current sensing

 Precision Low Drift, Low Frequency ADC Drivers

 Process Control Systems

 Precision Voltage Reference Buffers
