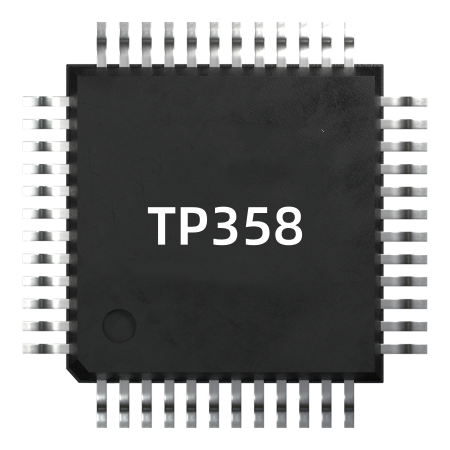

TP321/358/324 are general purpose single, dual and quad CMOS op-amps with low offset, high frequency response, low power, low supply voltage, and rail-to-rail inputs and outputs. They incorporate 3PEAK’s proprietary and patented design techniques to achieve best in-class performance with low cost among all micro-power CMOS amplifiers.

The TP321/358/324 are unity gain stable with a constant 1MHz gain-bandwidth product, 1V/μs slew rate while consuming only 45μA of supply current per amplifier. The rail-to-rail input and output characteristics allow the full power-supply voltage to be used for signal range. This combination of features makes the TP321/358 /324 superior and cost-effective among RRIO CMOS op-amps.

The TP321/358/324 are ideal choices for battery-powered applications because they minimize errors due to power supply voltage variations over the lifetime of the battery and maintain high CMRR even for a rail-to-rail input op-amp.

The TP321/358/324 can be used as cost-effective plug-in replacements for many commercially available op amps to reduce power and improve input/output range and performance.

Features

 General Purpose, Low Cost

 Gain Bandwidth Product: 1MHz

 Low Quiescent Current: 45μA/Amplifier

 Offset Voltage: 5.0mV Maximum

 Offset Voltage Temperature Drift: 2uV/°C

 Input Bias Current: 10pA

 CMRR/PSRR: 90dB

 Unity Gain Stable

 Rail-to-Rail Input and Output

 No Phase Reversal for Overdriven Inputs

 Supply Voltage Range:

 TP321-DF0R: 2.1V to 5.5V

 Other Part: 2.1V to 6.0V

 Operation Range: –40°C to 125°C

Applications

 Audio Output

 Battery and Power Supply Control

 Smoke/Gas/Environment Sensors

 Medical Equipment

 Portable Instruments and Mobile Device

 Active Filters

 Piezo Electrical Transducer Amplifier

 Sensor Interface

 ASIC Input or Output Amplifier
