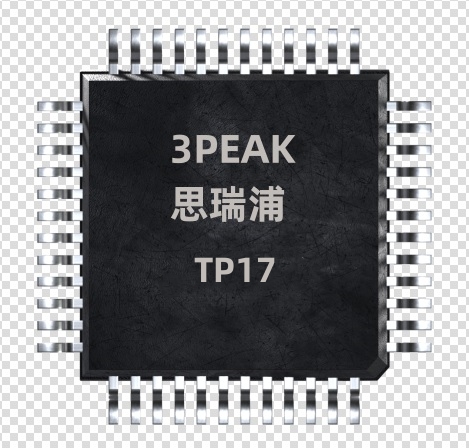

The TP17 is newest high supply voltage amplifiers with low offset, low power and stable high frequency response. It incorporates 3PEAK’s proprietary and patented design techniques to achieve very good AC performance with 6MHz bandwidth, 20V/μs slew rate and low distortion while drawing only 1500μA of quiescent current per amplifier. The input common-mode voltage range extends to V–, and the outputs swing rail-to-rail. The TP17 family can be used as plug-in replacements for many commercially available op-amps to reduce power and improve input/output range and performance. The combination of features makes the TP17 ideal choices for industrial control, instrumentation.

Features :

 Supply Voltage: 4.5V to 36V

  Rail to Rail Output

 Bandwidth: 6 MHz

  Slew Rate: 20V/μs

 Excellent EMI Suppress Performance

 Offset Voltage: ±100μV Maximum

 Offset Voltage Temperature Drift: 2 μV/°C

 Low Noise: 25 nV/√Hz at 1kHz

 –40°C to 125°C Operation Temperature Range Applications

 Instrumentation  Active Filters, ASIC Input or Output

Amplifier :

 Sensor Interface

 Motor Control

 Industrial Control
